Accessories
Adapters

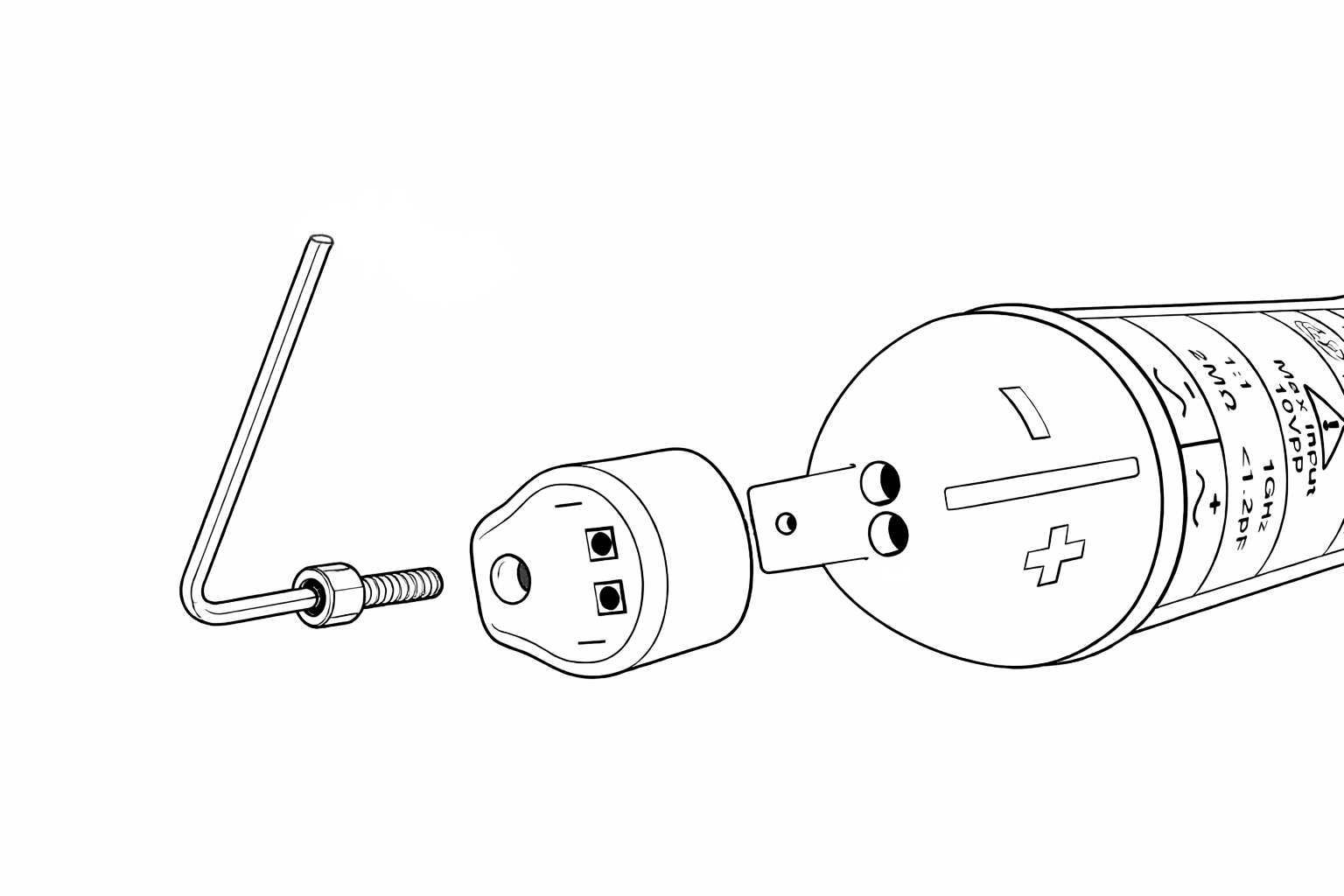

×10 Divider Adapter
You can connect the adapter using the screw located on the front with the provided hex key.

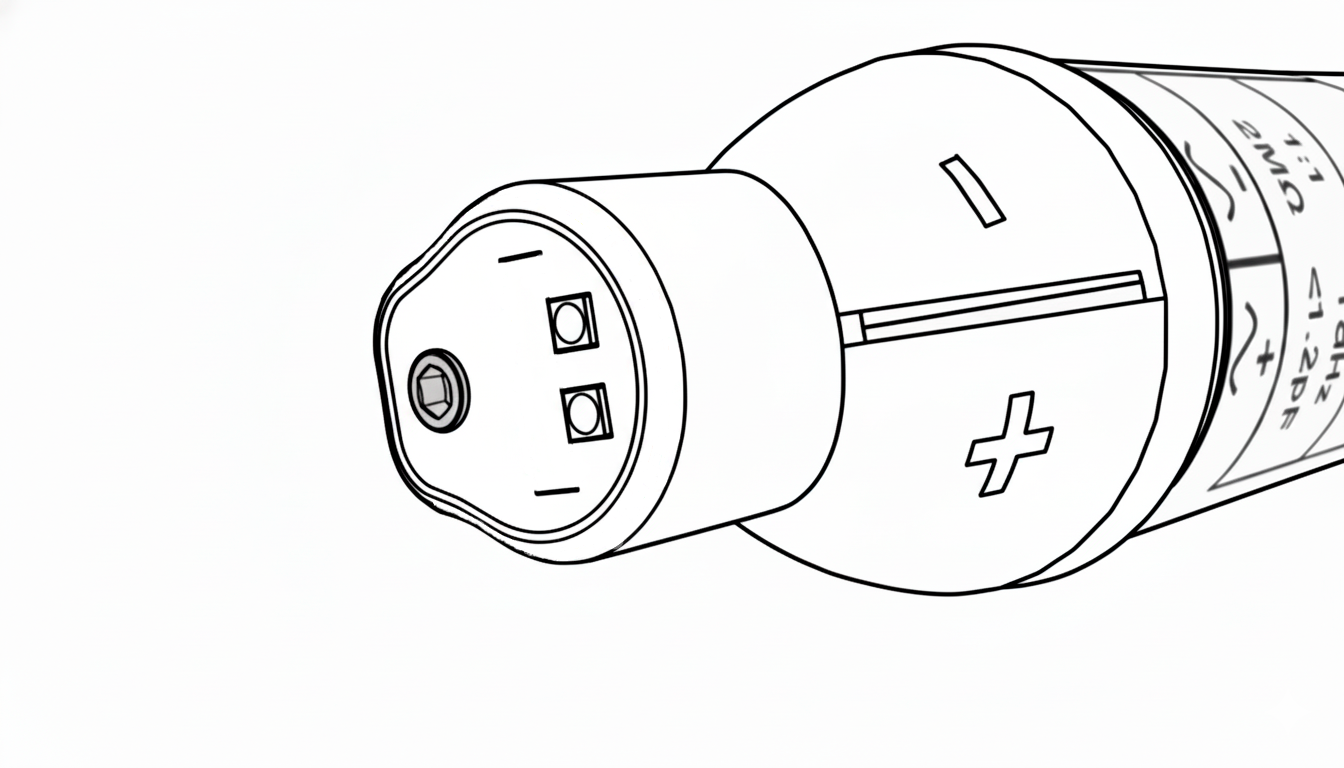

It would look like this.
Solder Adapter

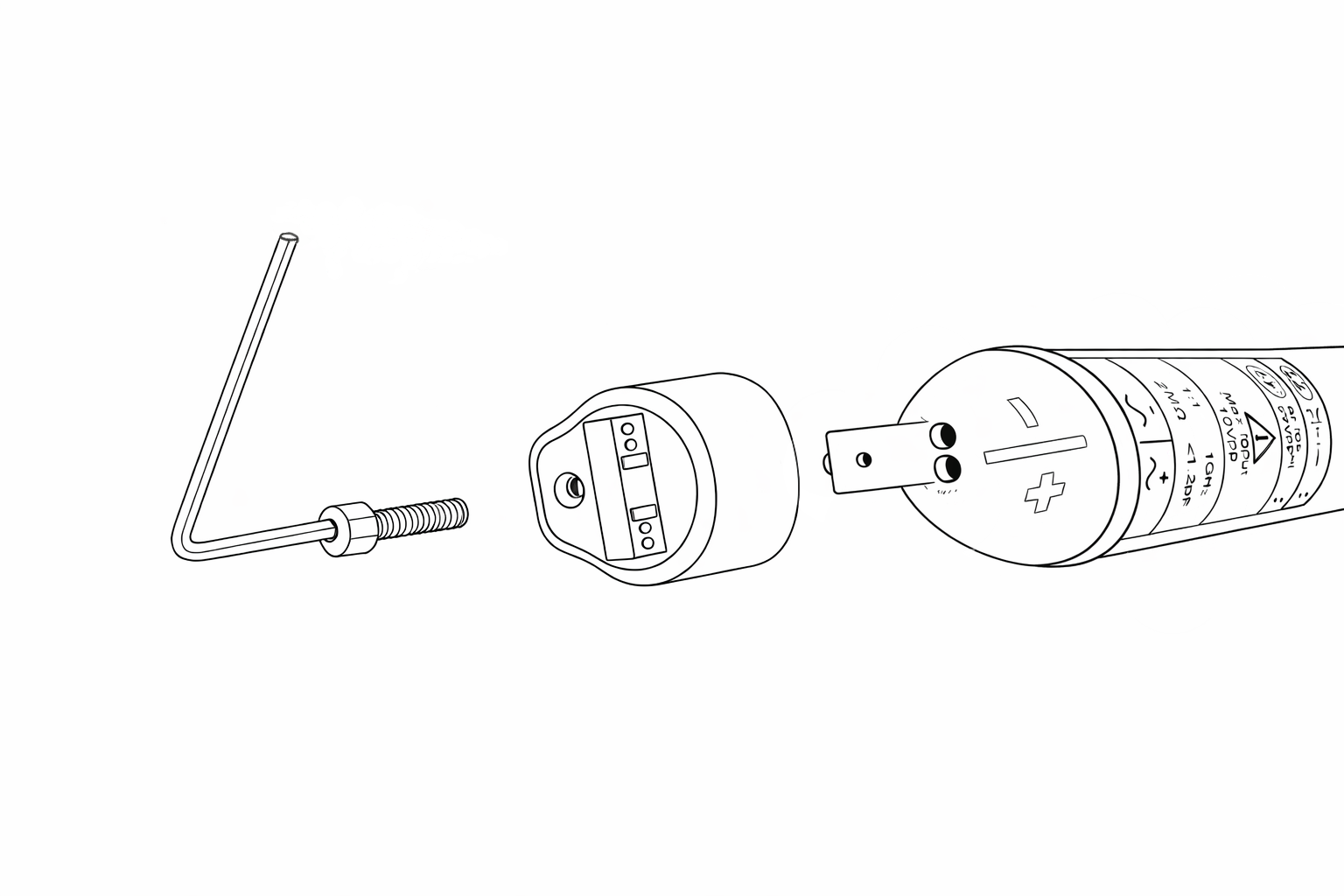

You can connect the adapter using the screw located on the front with the provided hex key.

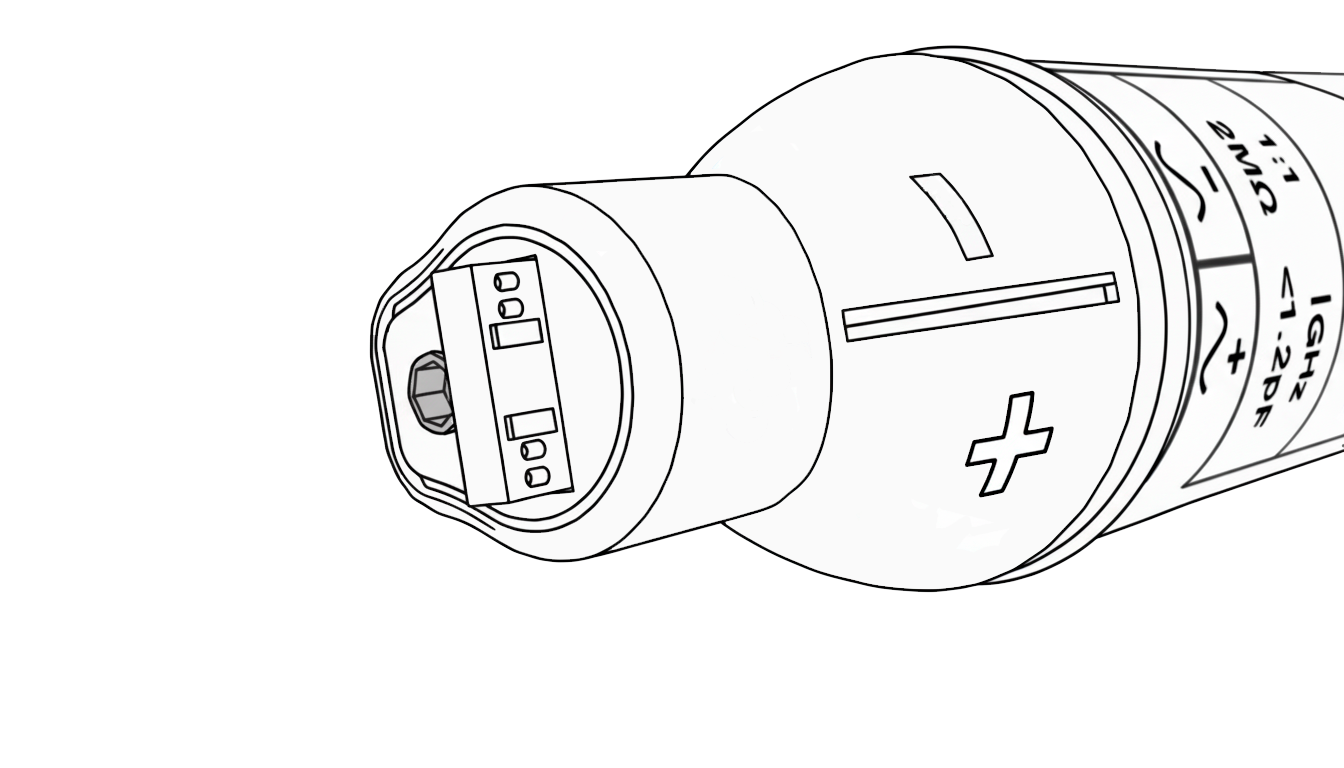

It would look like this.

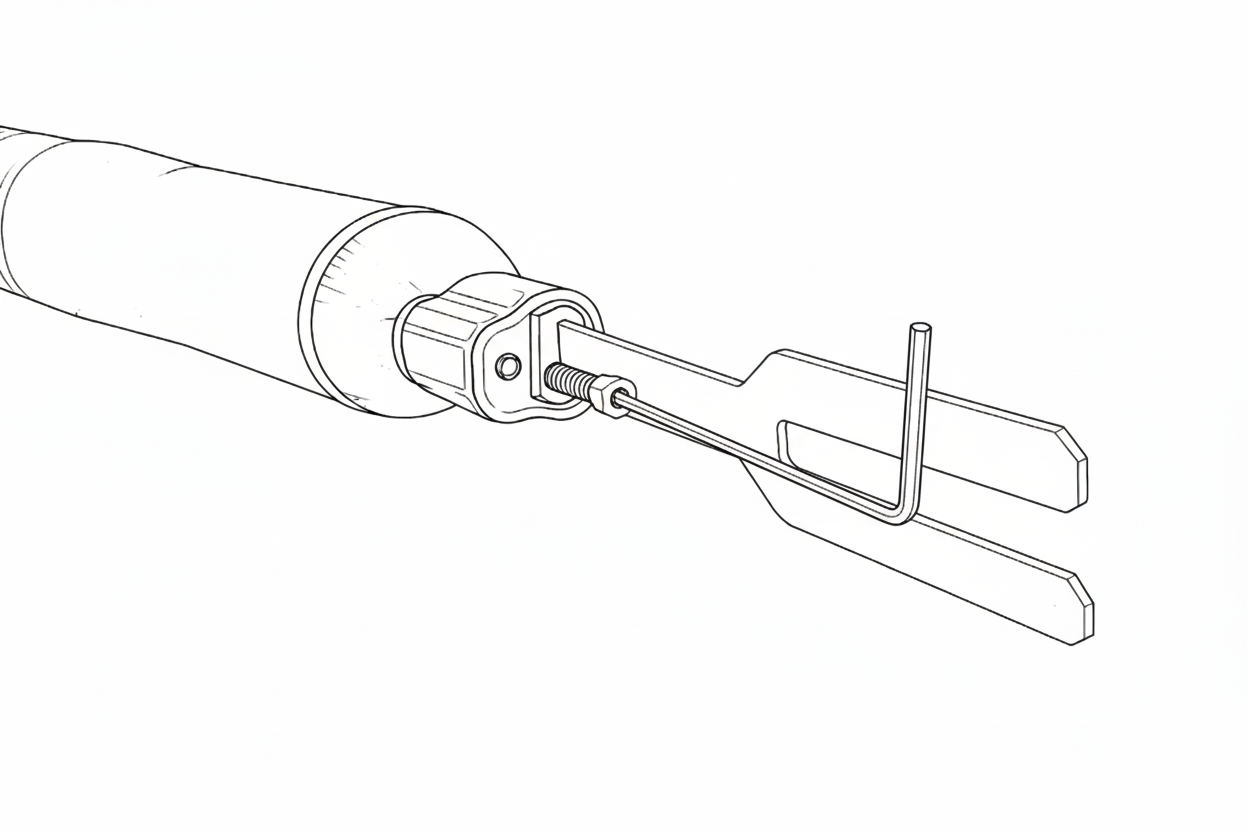

Flex Adapter
You can connect the adapter using the screw located on the front with the provided hex key.

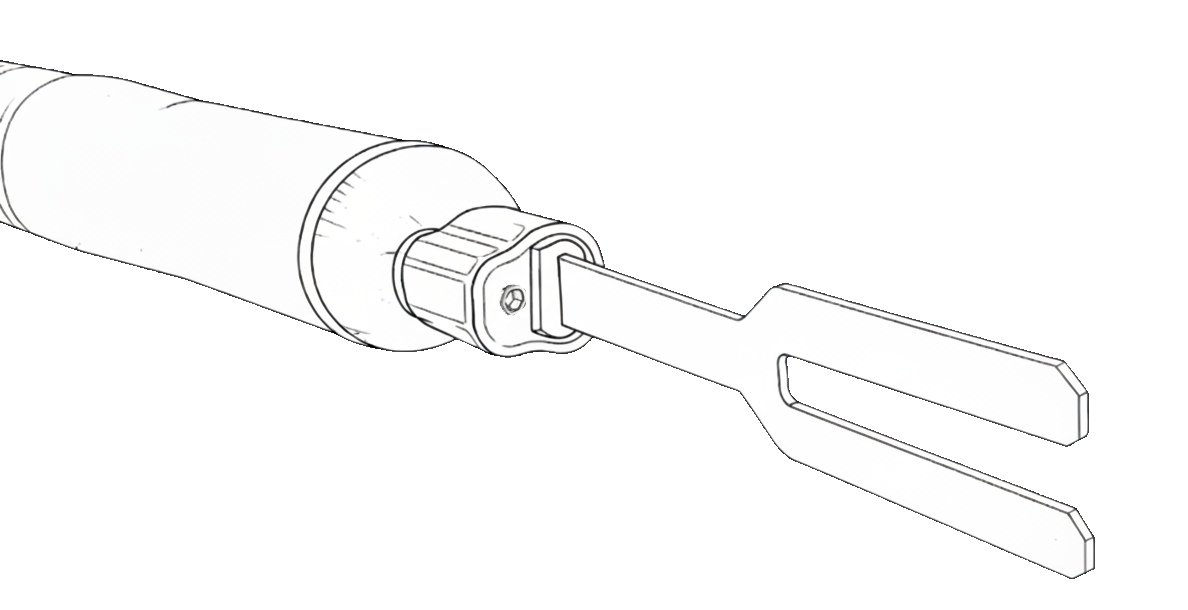

It would look like this.
Other Probe Heads

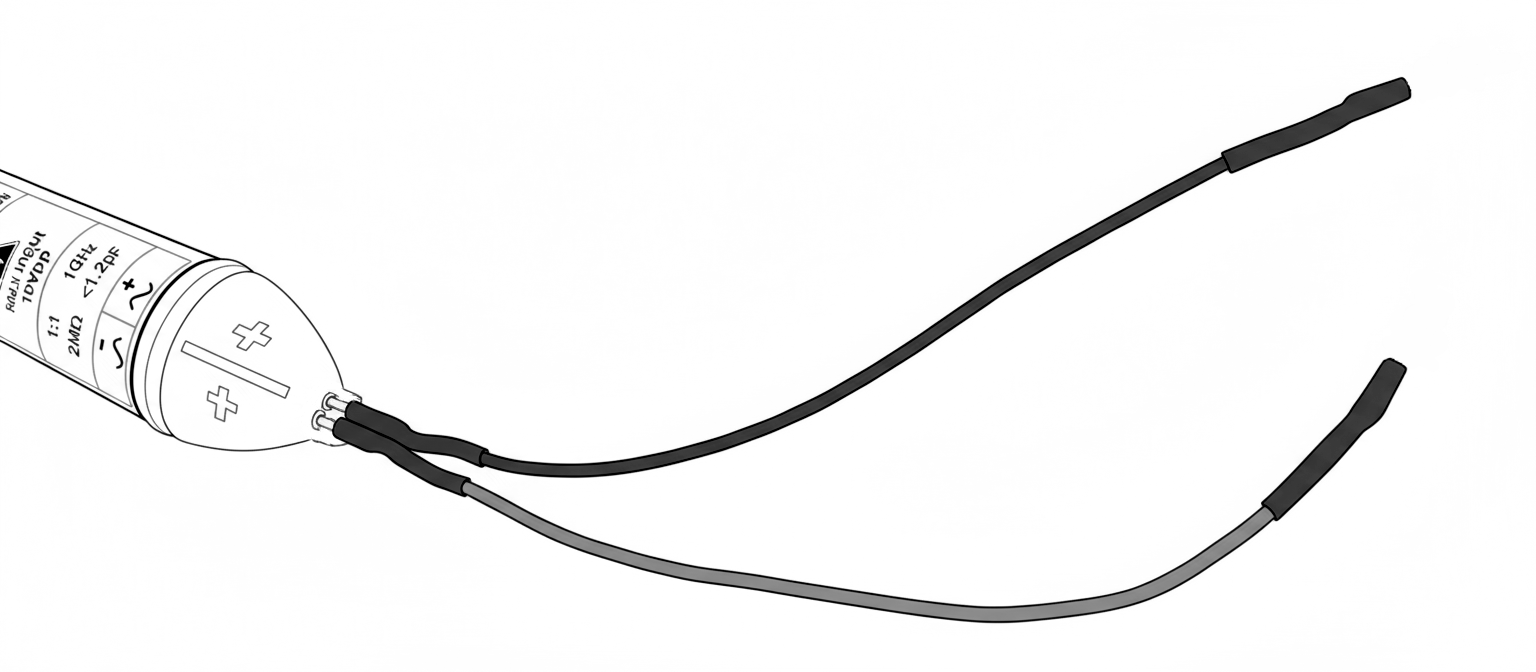

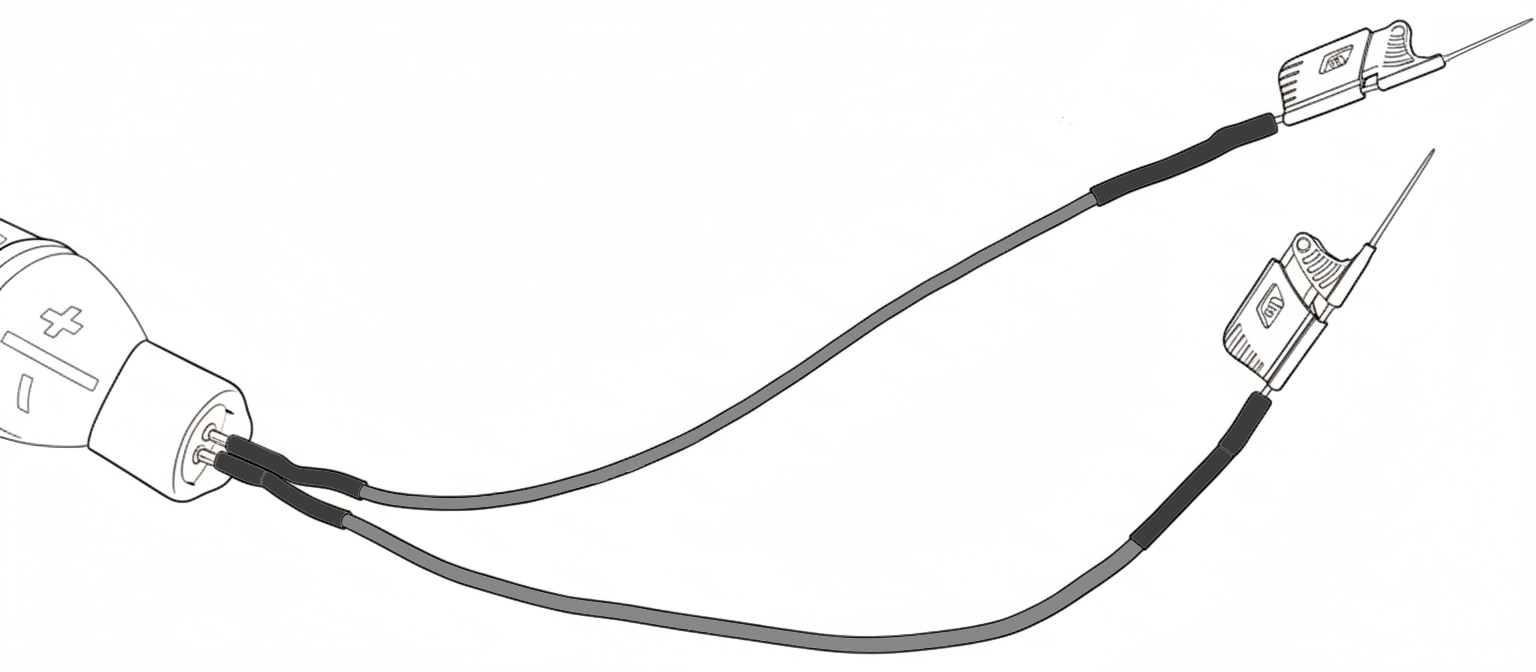

The Active Differential Probe includes a set of interchangeable accessories designed to provide flexible and reliable connections for a wide range of measurement scenarios. These accessories enable secure contact with fine-pitch components and test pads, ensuring accurate measurements in dense and high-speed circuit environments.Test Leads MicroLead Male–Female, 1 mm(diameter pin) (red/black, 10 cm):
Used as direct test leads (male–female, 1 mm diameter) for connecting the probe to test points without the need for an adapter.
Test Leads MicroLead Male–Female, 0.8 mm (diameter pin) (red/black, 10 cm):
Used as direct test leads (male–female, 0.8 mm diameter) for connecting the probe to test points without the need for an adapter.Test Leads MicroLead Male–Male, 1 mm (diameter pin) (red/black, 10 cm):

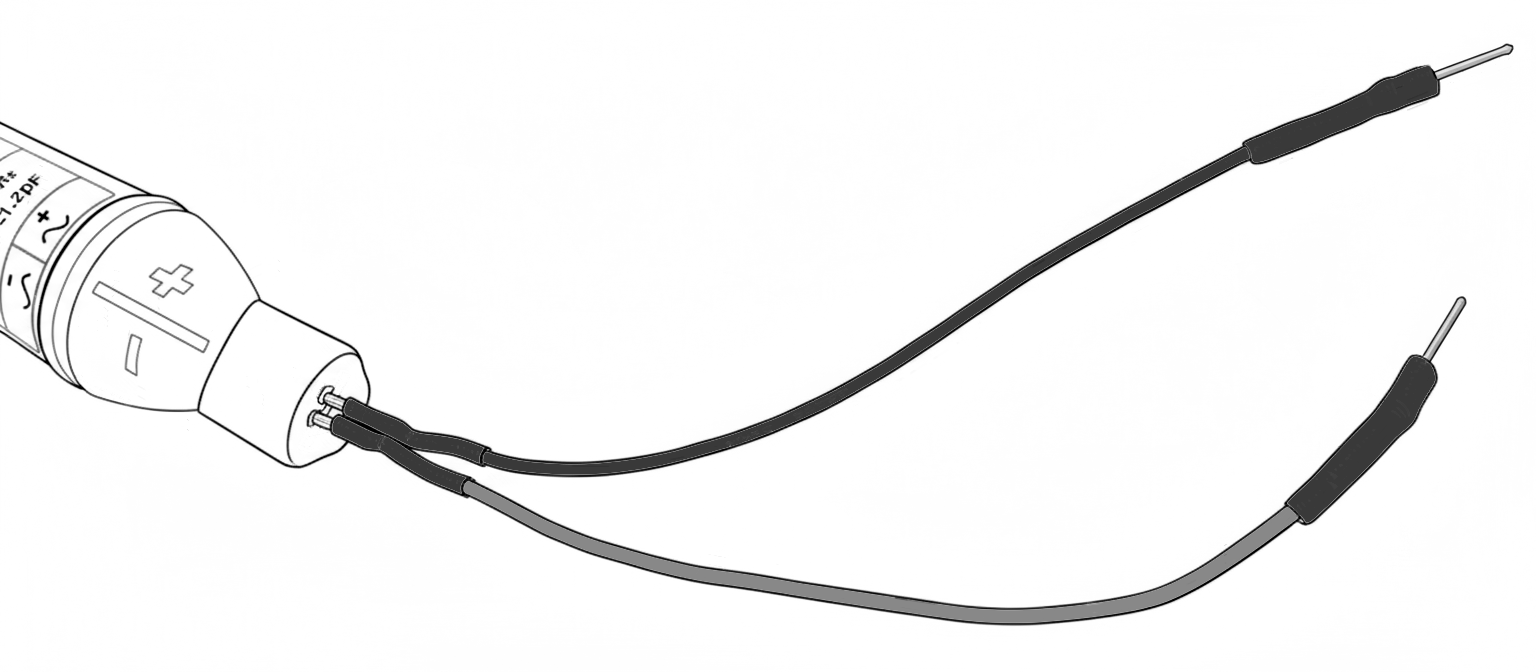

Used as direct test leads (male–male, 1 mm diameter) for connection to test points; must be used with the x10 divider adapter.
Microclip (red & black):
The microclip is compatible with 0.8 mm and 1 mm test leads.
Needle Tip:
Fine probe tips for precise contact on small pads, vias, or dense PCB layouts.
Other Available Accessories

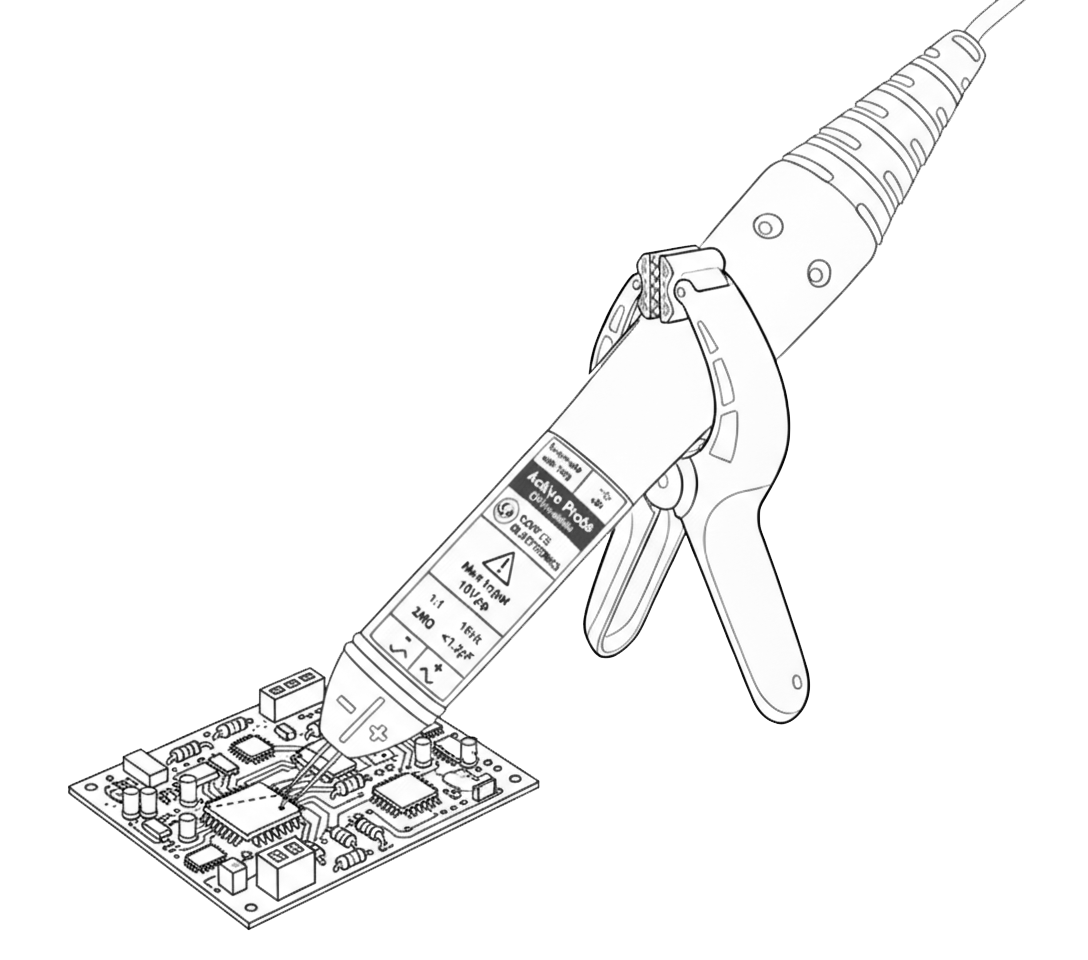

Freehand Probe Holder:
Used to securely hold or stabilize the probe or adapters during measurement.
